SLACK PULLING CARRIAGES
Carriages are available in three different styles: a non-slack-pulling type with no dropline, intended for operation with, and usually supplied with, grapples; a slack-pulling type with a dropline and butt plate, intended for use with chokers; and, a combination carriage with both a dropline and a grapple swivel assembly, intended for use with either chokers or grapples.

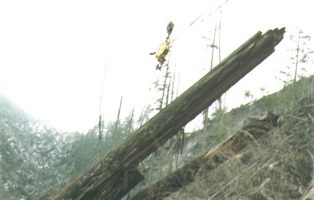

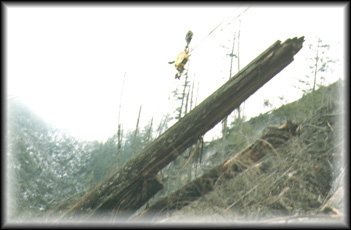

SPC102G Combination Carriage in
Operation using its Dropline.
Features & Benefits
- Standard dropline
- Combination dropline/grapple
- Open self-cleaning design
- All Q/T fabrication
- Heavy duty roller bearings
- Low-friction pressure roller
- Easy to reeve and service
See reeving diagram for further information.
Specifications
| MODEL | MAIN LINES | DROP LINE | NOMINAL SLACK (ft) | WEIGHT (lb) |
|---|---|---|---|---|
| SPC092C | 5/8"-3/4" | 3/4"-7/8" | 125 | 560 |
| SPC102C | 7/8"-1" | 1"-1-1/8" | 150 | 880 |
| SPC092G | 5/8"-3/4" | 3/4"-7/8" | 125 | 910 |
| SPC102G | 7/8"-1" | 1"-1-1/8" | 150 | 1240 |
'C' suffix denotes choker support (dropline-only);
'G' suffix denotes combined choker and grapple support.
